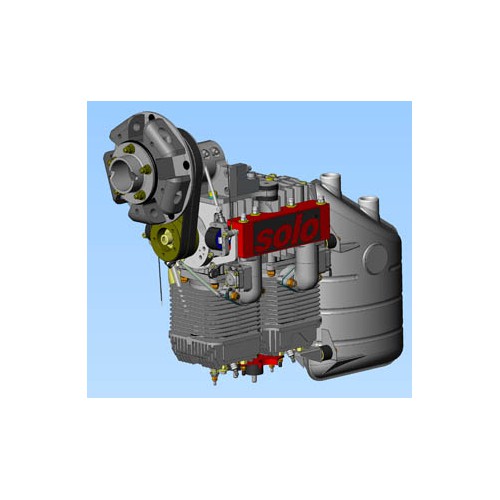

SOLO® Aircraft Engine 2350 D
Description of construction
- In-line-two-cylinder-two-stroke engine
- Air-cooling
- Mixture control via two diaphragm carburetors
- CDI ignition
- Propeller mounted on belt drive
- No engine starter
- Crank-case-pressure operated fuel pump
Operational data and limitations
| Take-off-speed, power and Max. cont. speed, power | 22 kW at 6,500 1/min. |
| Max rpm | 6,600 1/min. |
| Idle rpm | Not available - no throttle control |
| Cylinder head temp. | Max. 275°C (measured at spark plug) |
| Fuel consumption at cruise | Approx 3.7 US gal./hr (14 l/hr.) |
| Engine Displacement | 430 ccm, cyl. bore 70 mm, stroke 56 mm |
| Compression Ratio | 12 : 1 |
| Ignition Unit | Magneto SOLO, ignition coil Ducati |
| Ignition Plugs | BOSCH W 5 AC heat range 225 or Champion L82 C, Gap 0,5 mm |
| Carburetor | SOLO, metering-device WALBRO |
| Fuel Pump | BING |
| Direction of rotation | Counterclockwise, seen in direction of flight |
| Fuel | 2-Stroke mix, AVGAS 100LL, premium gas (min. 95 ROZ) |
| Mixture | Mixture ratio 1 : 40 , 2-stroke Castrol mineral oil or synthetic oil, or other oils with specification according to JASO FC oder FD |
| Dry Weight | Approx. 23,5 kg, complete with muffler, without propeller |
| Belt Drive | Ratio 1:1,56 |
AIRWORTHINESS DIRECTIVE
AD 2002-130/2 (27.04.02) Engine: Solo 2350 D Subject: Reinforcement of the propeller bearing block on the engine 2350D english version
Download (9.09k)AIRWORTHINESS DIRECTIVE
AD 2002-130/2 (27.04.02) Engine: Solo 2350 D Subject: Reinforcement of the propeller bearing block on the engine 2350D german version
Download (7.23k)TM 4603-11
Reinforcement of the propeller bearing block on the engine 2350D (15.04.02)
Download (658.17k)TM 4603-18
a) Introduction of a nut with flange at the excentric axle. b) Intoduction of a lifetime limit of 15 years of operation for the ball bearings at the bearing block of the reduction gear.
Download (245.36k)Airworthiness Directive
ATA 72 – Engine – Propeller Reduction Gear Excentric Axle Bearings – Replacement
